Fiber Field Kit: Color Code

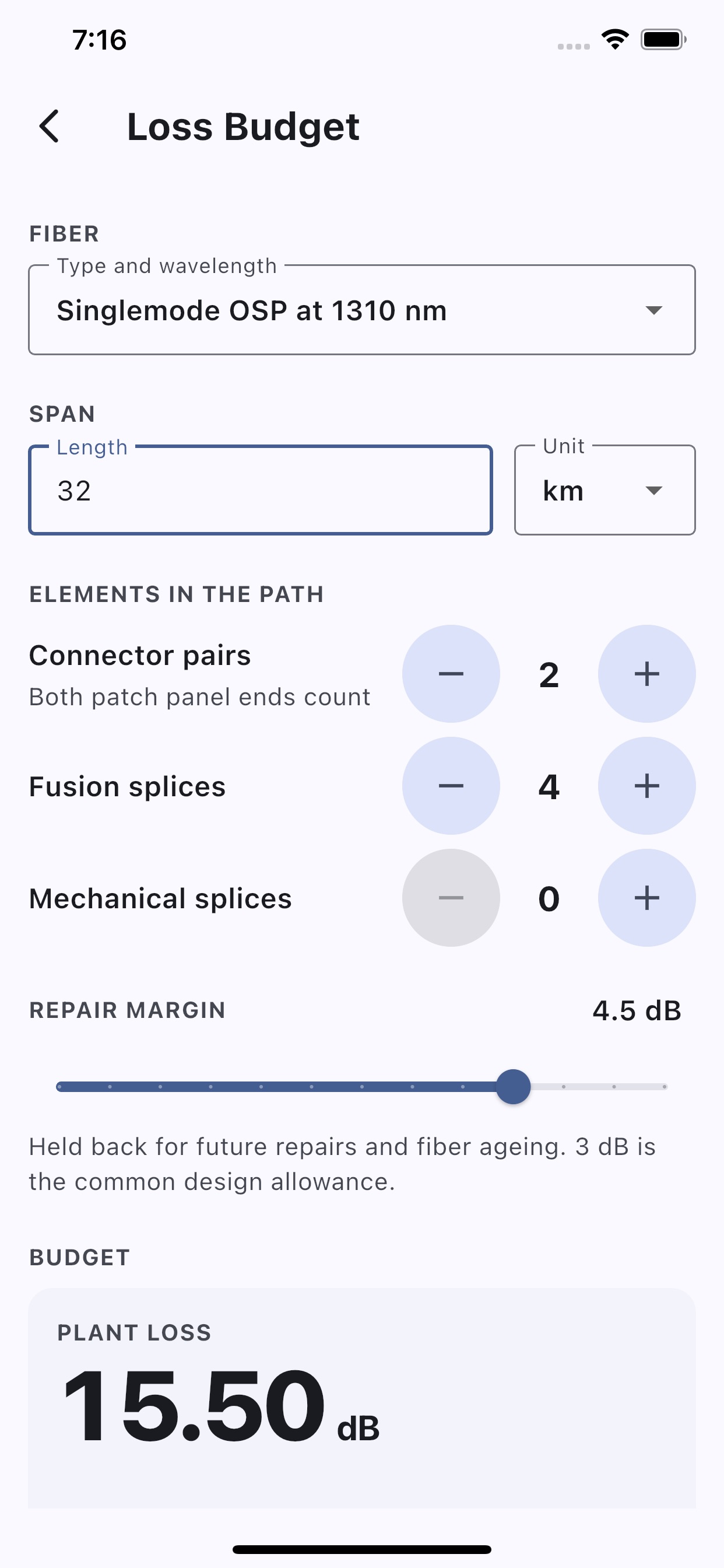

Field reference for fiber technicians. Works with no signal, no account, and no ads. COLOR CODE Strand number to buffer tube and fiber color, and back. Every construction from 12F to 1728F, loose tube and ribbon, plus custom builds for whatever your cable sheet says. Tap any strand to see its neighbors in the tube. LOSS BUDGET Itemized plant loss — fiber, connectors, splices — against TIA-568 allowances you can edit to match your own spec. Add your transceiver figures and it tells you whether the link closes and how far the budget actually reaches. OPTICAL POWER dBm to mW, µW and nW. Two meter readings to loss in dB, with the share of light that survives. PON SPLIT Splitter insertion loss for 1:2 through 1:128, checked against the Class B+ and C+ windows — including the minimum, so you catch a receiver overload on a short drop. CONDUIT FILL NEC Chapter 9 fill percentage, the largest cable count that still complies, and jam ratio warnings. BUILT FOR THE FIELD Large type and big targets so it works with gloves on. A dark theme that won't wreck your night vision at 4am. HONEST ABOUT ITS LIMITS Past three passes through the TIA-598 sequence, buffer tube marking is manufacturer-specific. This app says so instead of inventing a color. Edit a loss allowance and it stops citing the standard it no longer follows. JOB RECORDS (one-time unlock) Record each splice at the closure with its measured loss, checked against your job's spec as you enter it. Save and next keeps the cables and steps the strand numbers on. When the work is done, export the whole job as a PDF closeout package — with anything still outstanding listed up front, so nothing gets handed over looking finished when it isn't. No account. No tracking. Nothing leaves your phone.
